Deployment Model

cimpl-azure-provisioning deploys a complete OSDU platform on AKS Automatic using a layered Terraform architecture. This page covers the deployment lifecycle, namespace layout, and how the layers map to the repository structure.

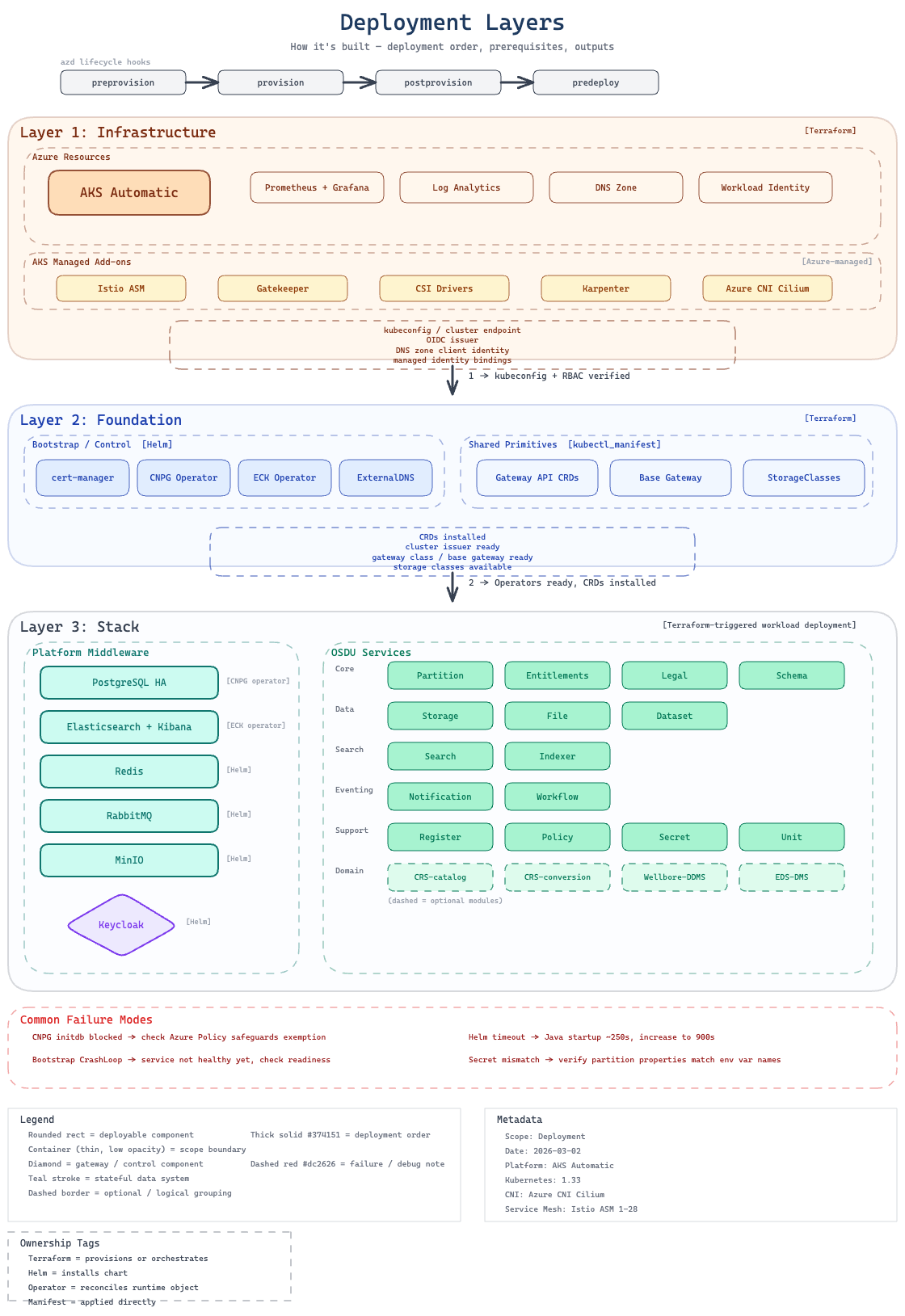

Deployment Layers

Deployment Layers

The deployment is split into four Terraform states, with an optional access-bootstrap layer separating privileged Azure authorization from core infrastructure:

Layer Directory Deployed By Purpose
1. Cluster Infrastructure infra/ azd provision AKS cluster, system node pool, monitoring workspaces, optional Grafana workspace, workload identities
1.5 Access Bootstrap infra-access/ ./scripts/bootstrap-access.ps1 AKS RBAC grants, policy exemptions, Grafana access, DNS role assignments
2. Foundation software/foundation/ post-provision hook Cluster-wide singletons: cert-manager, ECK operator, CNPG operator, ExternalDNS, Gateway API CRDs, StorageClasses
3. Software Stack software/stack/ pre-deploy hook Middleware instances (ES, PG, Redis, RabbitMQ, etc.) + all OSDU services

Why this split? The AKS cluster must exist before any Kubernetes resources can be deployed. Foundation components (operators, CRDs, StorageClasses) are cluster-wide singletons that all stacks share. The software stack deploys middleware instances and OSDU services that can vary per stack. infra-access/ exists so privileged Azure authorization can be applied by a different identity without polluting the core infrastructure state.

Conceptual vs Terraform layers

Conceptually the architecture has three tiers: infrastructure, platform middleware, and OSDU services. In practice, middleware and OSDU services share a single Terraform state (software/stack/) because OSDU services have explicit depends_on relationships with middleware modules. The foundation layer was extracted to hold cluster-wide singletons that are independent of any individual stack.

Evolution

The original design used two Terraform states (see ADR-0003); the foundation layer was extracted later to improve lifecycle isolation.

Namespace Architecture

Resources are organized into namespaces with optional stack-id suffix for multi-stack support (see ADR-0017):

Namespace Contents Istio Injection
foundation Cluster-wide operators (cert-manager, ECK, CNPG), Gateway CRDs, StorageClasses N/A (operators)
platform Middleware instances: Elasticsearch, PostgreSQL, Redis, RabbitMQ, MinIO, Keycloak, Airflow Enabled (STRICT mTLS, with pod-level opt-outs)
osdu OSDU common resources + all OSDU services Enabled (STRICT mTLS)

For named stacks (e.g., STACK_NAME=blue), namespaces become platform-blue and osdu-blue. The foundation namespace is shared across all stacks.

Multi-Stack Deployment

Multiple independent OSDU instances can run on the same cluster. Each stack gets its own platform-{name} and osdu-{name} namespaces with isolated middleware instances and OSDU services. The shared foundation layer (cert-manager, ECK operator, CNPG operator) serves all stacks.

# Deploy the default stack
azd deploy

# Deploy a second stack with a different name
azd env set STACK_NAME blue
azd deploy

Each stack maintains its own Terraform state, PostgreSQL cluster, Elasticsearch cluster, and OSDU service set. Cross-stack resources (CRDs, operators, StorageClasses) are managed once in the foundation layer.

Deployment Flow

The deployment lifecycle is orchestrated by Azure Developer CLI (azd) hooks. Each hook maps to a PowerShell script that manages a specific deployment phase:

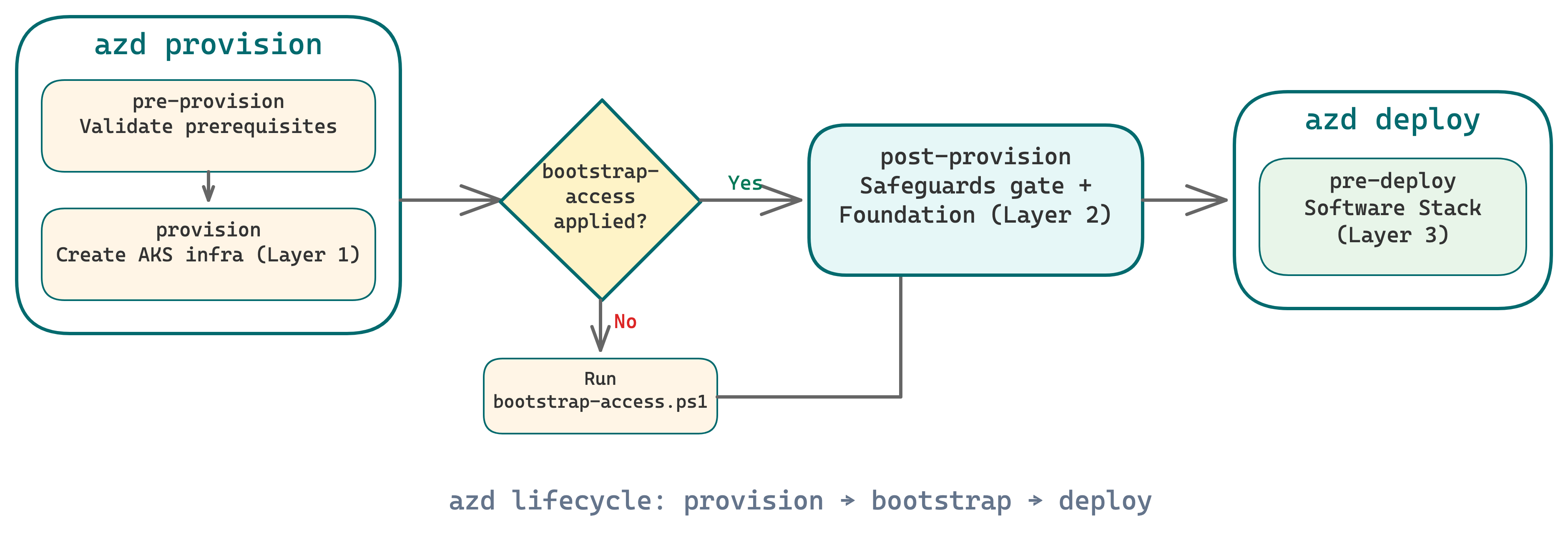

Deployment Flow

Why a gate? Azure Policy/Gatekeeper is eventually consistent. Fresh clusters have a window where policies aren't fully reconciled. The post-provision hook makes safeguards readiness an explicit gate before deploying any workloads (see ADR-0007).

Lifecycle Scripts

Each azd hook maps to a PowerShell script in scripts/. These scripts bridge the gap between azd's lifecycle model and the multi-layer Terraform architecture. Use this as a reference; most readers only need the deployment flow above.

Script azd Hook Purpose Key Environment Variables
resolve-chart-versions.ps1 prerestore Query OCI registry for latest OSDU chart versions, write to .chart-versions.env OSDU_CHART_VERSION
pre-provision.ps1 preprovision Validate Azure CLI, Terraform, Helm prerequisites; auto-generate credentials if missing CIMPL_INGRESS_PREFIX, OSDU_ADMIN_PASSWORD
bootstrap-access.ps1 (manual) Apply infra-access/ Terraform — RBAC grants, policy exemptions, DNS roles, Grafana access ARM_PRINCIPAL_ID, DNS_ZONE_*
post-provision.ps1 postprovision Wait for safeguards readiness, then deploy foundation layer (software/foundation/) AKS_NAME, RESOURCE_GROUP
pre-deploy.ps1 predeploy Deploy software stack (software/stack/) — middleware + OSDU services STACK_NAME, enable_* flags
pre-down.ps1 predown Destroy software stack and foundation before cluster teardown STACK_NAME
post-down.ps1 postdown Clean up .terraform directories and stale state artifacts —

infra-access bootstrap

The bootstrap-access.ps1 script is run manually (not as an azd hook) because it requires elevated Azure permissions. It applies infra-access/ which grants AKS RBAC roles, creates the CNPG policy exemption, and optionally configures Grafana and DNS access. See ADR-0020.

External Access

When DNS and ingress are configured, the gateway module exposes multiple endpoints externally via HTTPS with automatic TLS certificates (cert-manager + Let's Encrypt):

Endpoint Hostname Purpose
OSDU API {prefix}.{zone} Path-based routing to all enabled OSDU services (e.g., /api/partition/, /api/storage/)
Kibana {prefix}-kibana.{zone} Elasticsearch/Kibana dashboard
Keycloak {prefix}-keycloak.{zone} Identity provider admin console and token endpoint
Airflow {prefix}-airflow.{zone} DAG monitoring and task execution UI (optional)

Each endpoint is optional, independently exposed, and backed by its own Gateway API HTTPS listener, HTTPRoute, TLS Certificate, and cross-namespace ReferenceGrants.

Repository Structure

The repository layout mirrors the deployment layers. Each directory maps to a Terraform state with its own lifecycle.

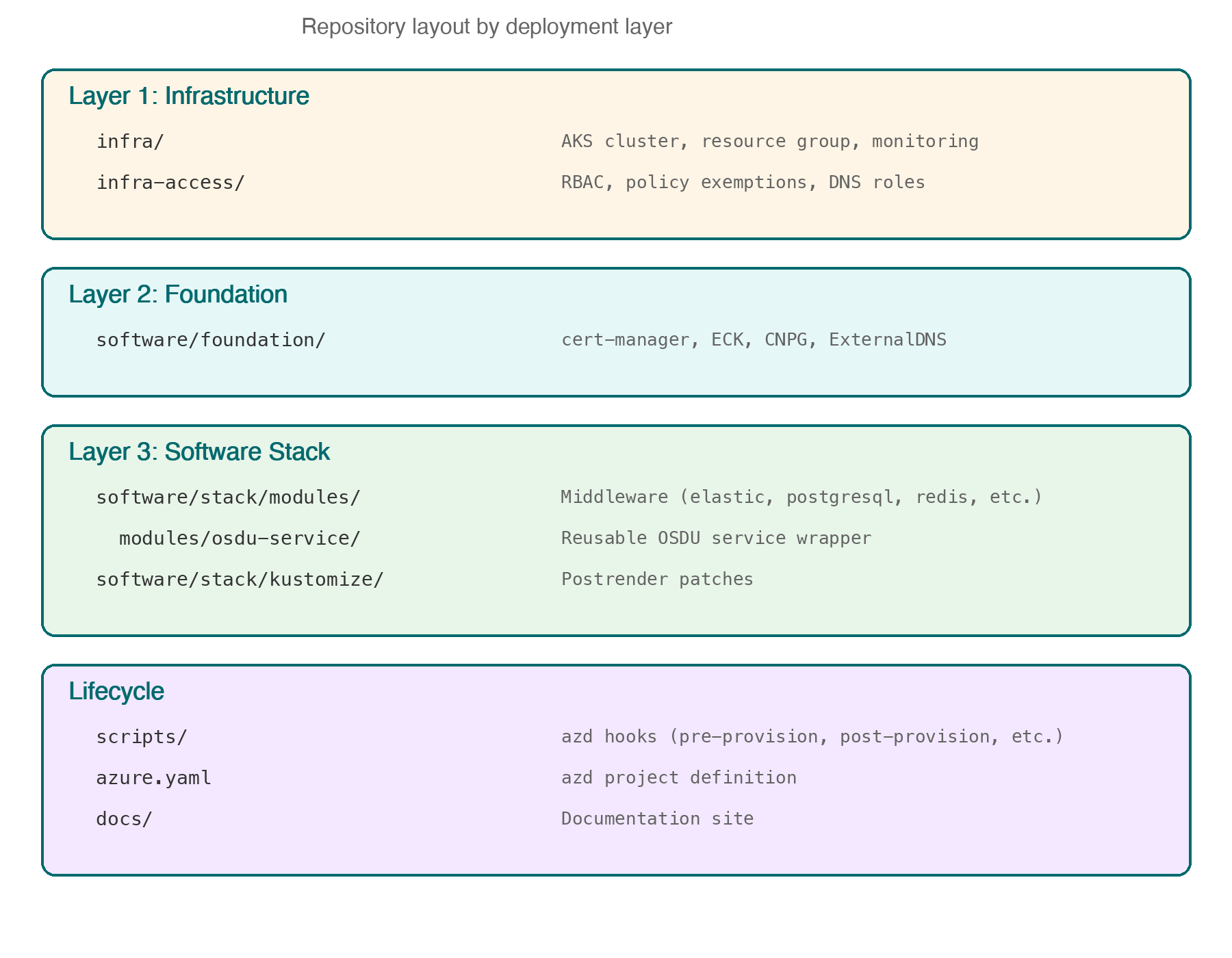

Project Structure
